Solution

Five-axis grinding machine grinding wheel processing alloy milling cutter

time:2022-03-08 16:03:28hit:212


800图层 6.jpg

machine tool: naseiko

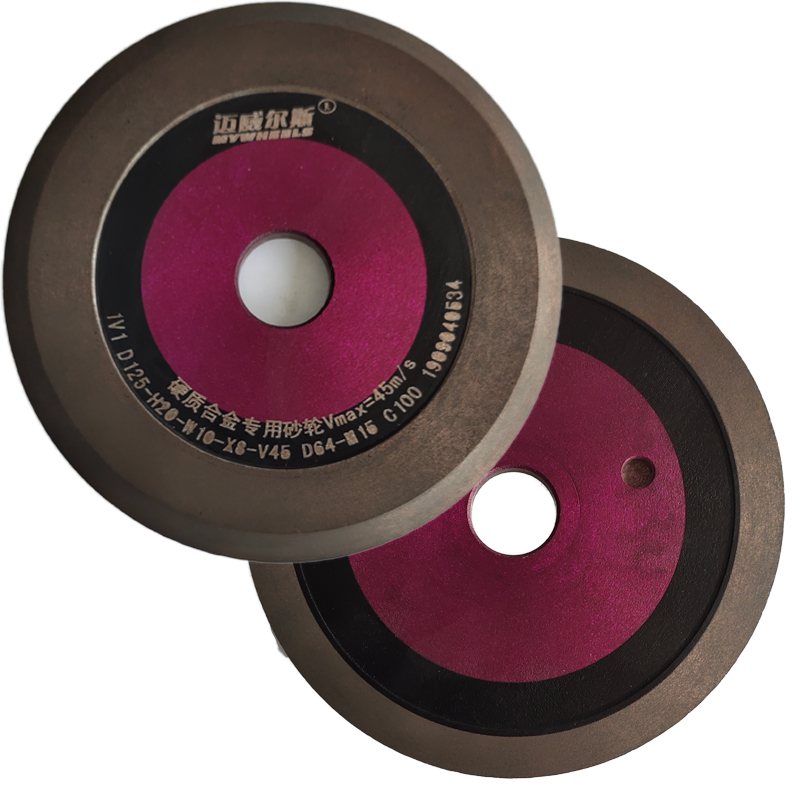

Grinding wheel model:  1V1 125X20X10X8X85°   D64M666-5

100X10X four blades X12 blade length

Speed: 2800 rpm

Processing depth :3mm

Processing speed: 70mm/min

Processing quantity: 395 pieces

Grinding wheel arc: R0.35

Replace machine tool

100X12X4 blade x30 blade length, helix angle 30

Speed: 2800 rpm

Processing depth: 2.16mm, processed in one go

Tool feed speed: 55mm/min

Processing quantity: 110 pieces

R angle is acceptable
